Continuation of my last article, where I implemented a virtual thread system with Effect [LINK].

Follow-up: I had interesting exchanges about the limitations of the pattern I showed in the last article.

I've got you covered in this article; I'll take you further with me from here. We will use the cluster package to manage a cluster of programs and unlock the distribution system.

Don't be afraid, I built that step by step.

When and What

During your journey as a developer, you need to solve some problems. These problems can take more time or can't be executed inside a simple script. In my previous article I listed some use cases [LINK]. I'm going fast, but you might want to distribute some actions to another instance and not do everything in the endpoint call connection. Examples:

CQRS projection
Email Sending
ETL
Report generation

For the content of this article, I'll build a complete ETL system managed by an API.

The Scenario

The scenario is the following:

One API with 2 endpoints:

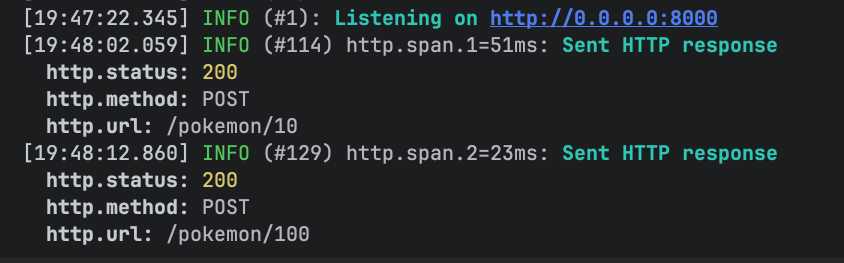

- Synchronize pokemon by id and run the ETL pokemon synchronization

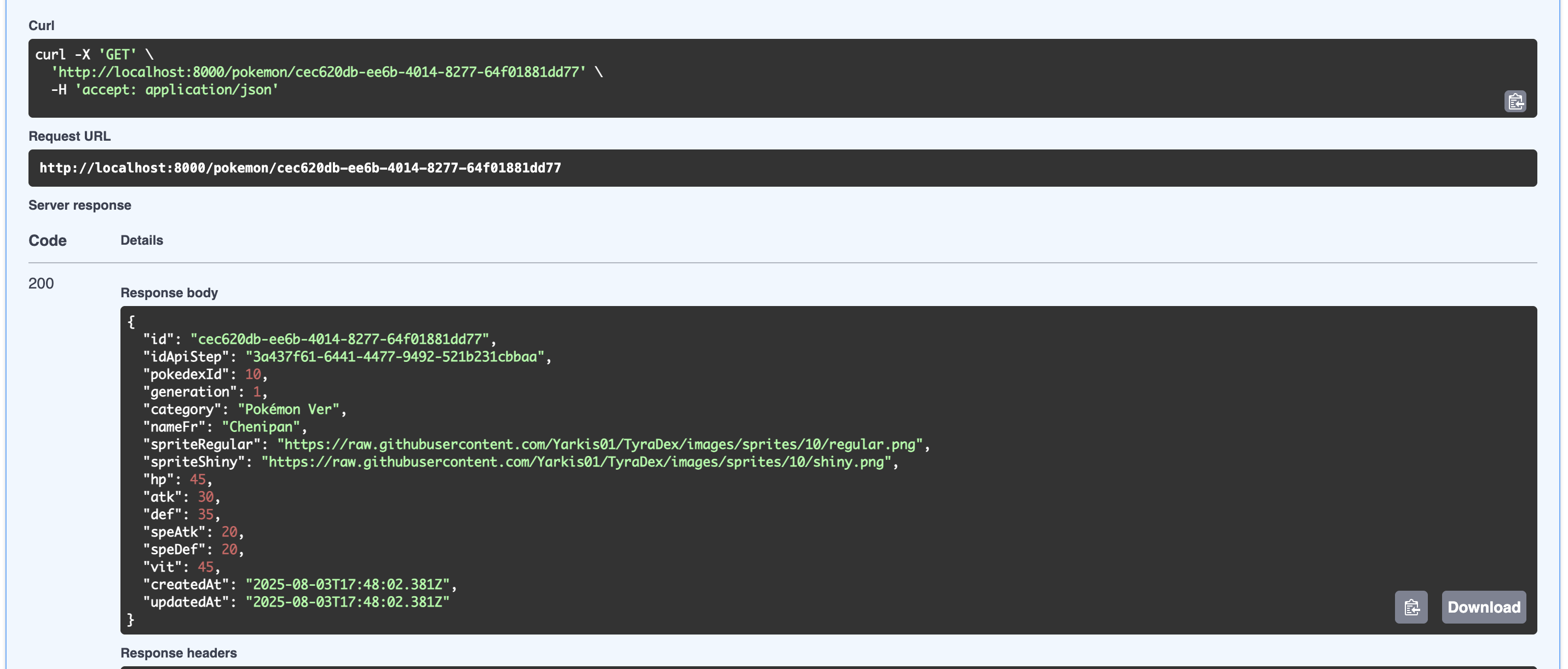

- Get pokemon by id
One Postgres for everything, we use it as principal data, data warehouse and Effect/cluster worker manager.
Shard Manager is a program instance whose role is to manage all instances of the workers
The workflow is a separate program. You can put multiple workflows inside a worker, and you can create different workers with different workflows.

Effect Cluster Under the Hood

Synchronization through DB and ShardManager

The database as synchronization point

All workers read and write to the same database
When a worker modifies data, other workers see the change on their next request
The DB guarantees consistency: no corrupted data even with multiple simultaneous workers
SQL transactions isolate operations between workers

The ShardManager: the coordinator

It's a component that distributes work between workers
It decides which worker processes which task
Prevents two workers from processing the same thing simultaneously
Manages load distribution automatically

How it works together

The ShardManager assigns tasks: "Worker 1, process user ID 1-1000", "Worker 2, process user ID 1001-2000"
Each worker executes its part using its DB connection
If a worker fails, the ShardManager redistributes its work to others
The DB remains the single source of truth for all data

Automatic synchronization

No need to manually synchronize workers between themselves
The DB + ShardManager handle everything
Workers can start and stop independently
The system remains consistent even if a worker crashes

In summary, the DB ensures data consistency, and the ShardManager ensures work distribution.

Practice Time

I made a public repo you can check out here.

It’s a monorepo using the Effect CLI to share as much code as possible across packages. I created seven packages:

database: All model definitions and repositories; I also define my SQL client once here.
domain: Shared types.
server: API logic.
shard-manager: Logic related to task coordination.
workflow: All workflow logic.
worker-etl: Initializes ETL workflows and worker logic.

To make it easier, I’ll split the practice section into 4 parts:

Defining the API workflow
Defining the transform workflow
Defining the API
Run everything and test

API Workflow

For the API workflow, I need three things:

A PokemonRawRepository
An HttpClient
The clean workflow definition

To begin, I need to define the type for the API response.

packages/domain/src/PokemonApiResponse.ts

import { Schema } from "effect"

export type PokemonSchema = typeof PokemonSchema.Type
export const PokemonSchema = Schema.Struct({
  pokedex_id: Schema.Number,
  generation: Schema.Number,
  category: Schema.String,
  name: Schema.Struct({
    fr: Schema.String,

    en: Schema.String,
    jp: Schema.String
  }),
  sprites: Schema.Struct({
    regular: Schema.String,
    shiny: Schema.String,
    gmax: Schema.NullOr(Schema.String)
  }),
  types: Schema.Array(
    Schema.Struct({
      name: Schema.String,
      image: Schema.String
    })
  ),
  talents: Schema.Array(
    Schema.Struct({
      name: Schema.String,
      tc: Schema.Boolean
    })
  ),
  stats: Schema.Struct({
    hp: Schema.Number,
    atk: Schema.Number,
    def: Schema.Number,
    spe_atk: Schema.Number,
    spe_def: Schema.Number,
    vit: Schema.Number
  }),
  resistances: Schema.Array(
    Schema.Struct({
      name: Schema.String,
      multiplier: Schema.Number
    })
  ),
  evolution: Schema.Struct({
    pre: Schema.NullOr(Schema.Unknown), // null ou autre objet inconnu
    next: Schema.Array(
      Schema.Struct({
        pokedex_id: Schema.Number,
        name: Schema.String,
        condition: Schema.String
      })
    ),
    mega: Schema.NullOr(Schema.Unknown)
  }),
  height: Schema.String,
  weight: Schema.String,
  egg_groups: Schema.Array(Schema.String),
  sexe: Schema.Struct({
    male: Schema.Number,
    female: Schema.Number
  }),
  catch_rate: Schema.Number,
  level_100: Schema.Number,
  formes: Schema.NullOr(Schema.Unknown)
})

Inside the database package, I create a PokemonRawModel and a PokemonRawRepository.

I store the response of the API call in JSON using PostgreSQL’s jsonb type.

packages/database/src/PokemonRawModel.ts

import { Model } from "@effect/sql"
import { Schema } from "effect"
import { UUID } from "effect/Schema"

import { PokemonApiResponse } from "@template/domain"

export const Timestamp = Schema.Date

export class PokemonRawModel extends Model.Class<PokemonRawModel>("PokemonRawModel")({
  id: Model.Generated(UUID),
  content: PokemonApiResponse.PokemonSchema,
  createdAt: Model.Generated(Timestamp),
  updatedAt: Model.Generated(Timestamp)
}) {}

PokemonRawRepository

packages/database/src/PokemonRawRepository.ts

import { SqlSchema } from "@effect/sql"
import { PgClient } from "@effect/sql-pg"
import { PokemonApiResponse } from "@template/domain"
import { Effect, Option, pipe, Schema } from "effect"
import { PgLive } from "./Sql.js"

export class PokemonRawRepository extends Effect.Service<PokemonRawRepository>()("PokemonRawRepository", {
  effect: Effect.gen(function*() {
    const sql = yield* PgClient.PgClient

    const pokemonInsertSchema = SqlSchema.single({
      Request: Schema.Struct({ content: PokemonApiResponse.PokemonSchema }),
      Result: Schema.Struct({ id: Schema.UUID }),
      execute: ({ content: contentInsert }) => {
        // Serialize manually to JSON string
        const serialized = JSON.stringify(contentInsert)

        return sql`INSERT INTO pokemon_raw (content)
                           VALUES (${serialized}::jsonb)
                           RETURNING id`
      }
    })

    const insertPokemonRaw = (content: PokemonApiResponse.PokemonSchema) =>
      pipe(
        pokemonInsertSchema({ content }),
        Effect.orDie,
        Effect.withSpan("pokemonRepo.insertRaw")
      )

    const findByIdSchema = SqlSchema.findOne({
      Request: Schema.UUID,
      Result: Schema.Struct({
        id: Schema.UUID,
        content: Schema.String
      }),
      execute: (id) =>
        sql`select id, content::jsonb as content
                                 from pokemon_raw
                                 where id = ${id}`
    })
    const findByIdPokemonRaw = (id: string) =>
      pipe(
        findByIdSchema(id),
        Effect.flatMap(
          Option.match({
            onNone: () => Effect.succeed(Option.none()),
            onSome: (rawPokemon) =>
              pipe(
                Effect.try({
                  try: () => JSON.parse(rawPokemon.content),
                  catch: (e) => new Error("Failed to parse JSON content: " + String(e))
                }),
                Effect.flatMap((parsedContent) =>
                  Schema.decodeUnknown(PokemonApiResponse.PokemonSchema)(parsedContent)
                ),
                Effect.map((validatedContent) =>
                  Option.some({
                    id: rawPokemon.id,
                    content: validatedContent
                  })
                )
              )
          })
        ),
        Effect.orDie,
        Effect.withSpan("pokemonRepo.findByID")
      )
    return {
      findById: findByIdPokemonRaw,
      insertPokemonRaw
    }
  }),
  dependencies: [PgLive]
}) {
}

I define two simple functions: one for insert, one for findById.

Next, I define the workflow TransformPokemonRawWorkflow.

const TransformPokemonRawWorkFlow = Workflow.make({
  name: "TransformPokemonRawWorkFlow",
  success: Schema.Void,
  error: TransformPokemonRawError,
  payload: {
    idRaw: Schema.String
  },
  idempotencyKey: ({ idRaw }) => idRaw
})

Now we can define the workflow.

packages/workflow/src/TransformPokemonRaw.ts

import { FetchHttpClient, HttpClient } from "@effect/platform"
import { Workflow } from "@effect/workflow"
import { PokemonRawRepository } from "@template/database"
import { PokemonApiResponse } from "@template/domain"
import { Effect, pipe, Schema } from "effect"
import { TransformPokemonRawWorkFlow } from "./TransformPokemonRaw.js"

class CallApiPokemonError extends Schema.TaggedError<CallApiPokemonError>(
  "CallApiPokemonError"
)("CallApiPokemonError", {
  message: Schema.String
}) {}

const CallPokemonApiWorkFlow = Workflow.make({
  name: "CallPokemonApiWorkFlow",
  success: Schema.Void,
  error: CallApiPokemonError,
  payload: {
    id: Schema.String,
    pokemonId: Schema.Int
  },
  idempotencyKey: ({ id }) => id
})

const makeCallPokemonApiWorkflowLogic = ({ id, pokemonId }: { id: string; pokemonId: number }) =>
  Effect.gen(function*() {
    const service = yield* CallPokemonApiService
    yield* service.run({ id, pokemonId })
  })

export class CallPokemonApiService extends Effect.Service<CallPokemonApiService>()(
  "CallPokemonApiService",
  {
    effect: Effect.gen(function*() {
      const repo = yield* PokemonRawRepository.PokemonRawRepository
      const httpClient = yield* HttpClient.HttpClient

      return {
        run: ({ pokemonId }: { id: string; pokemonId: number }) =>
          Effect.gen(function*() {
            const response = yield* httpClient.get(`https://tyradex.vercel.app/api/v1/pokemon/${pokemonId}`)
            const jsonData = yield* response.json
            const pokemon = yield* Schema.decodeUnknown(PokemonApiResponse.PokemonSchema)(jsonData)

            const pokeId = yield* repo.insertPokemonRaw(pokemon)
            console.log(pokeId)
            yield* TransformPokemonRawWorkFlow.execute({ idRaw: pokeId.id })
          }).pipe(
            Effect.catchAll((e) => Effect.fail(new CallApiPokemonError({ message: e.message })))
          )
      }
    }),
    dependencies: [PokemonRawRepository.PokemonRawRepository.Default, FetchHttpClient.layer]
  }
) {}

export { CallPokemonApiWorkFlow, makeCallPokemonApiWorkflowLogic }

`CallPokemonApiWorkFlow` Explanation

CallPokemonApiWorkFlow: Defines the workflow that will be triggered by the API.
CallPokemonApiService: A service that wraps the logic (easier to test).
makeCallPokemonApiWorkflowLogic: Entry point of the workflow logic.

Calling the Pokémon API

const response = yield* httpClient.get(...)

We call the API, decode the response using Schema.decodeUnknown, and store the result.

Save Raw Pokémon

const pokeId = yield* repo.insertPokemonRaw(pokemon)

We store the raw JSON from the API response in the database.

Trigger the Transform Workflow

yield* TransformPokemonRawWorkFlow.execute({ idRaw: pokeId.id }, { discard: true })

We trigger the second workflow and don’t wait for its result (discard: true).

And that’s it.

Defining the ETL Worker

We define a worker that will execute both workflows: the API call and the data transformation.

packages/workerEtl/src/bin.ts

import { ClusterWorkflowEngine } from "@effect/cluster"
import { NodeClusterRunnerSocket, NodeRuntime } from "@effect/platform-node"
import { Sql } from "@template/database"

import {
  CallPokemonApiService,
  CallPokemonApiWorkFlow,
  makeCallPokemonApiWorkflowLogic
} from "@template/workflow/CallApiPokemon"
import {
  makeTransformPokemonRawWorkflowLogic,
  TransformPokemonRawService,
  TransformPokemonRawWorkFlow
} from "@template/workflow/TransformPokemonRaw"
import { Effect, Layer, Logger, LogLevel } from "effect"

console.log("🚀 Démarrage du runner...")

const RunnerLayer = ClusterWorkflowEngine.layer.pipe(
  Layer.provideMerge(NodeClusterRunnerSocket.layer({
    storage: "sql"
  })),
  Layer.provideMerge(Sql.PgLive)
)

const CallPokemonApiWorkflowLayer = CallPokemonApiWorkFlow.toLayer(makeCallPokemonApiWorkflowLogic).pipe(
  Layer.provideMerge(RunnerLayer),
  Layer.provideMerge(CallPokemonApiService.Default)
)
const TransformPokemonRawWorkFlowLayer = TransformPokemonRawWorkFlow.toLayer(makeTransformPokemonRawWorkflowLogic).pipe(
  Layer.provideMerge(RunnerLayer),
  Layer.provideMerge(TransformPokemonRawService.Default)
)

const program = Effect.gen(function*() {
  console.log("📝 Enregistrement du workflow EmailWorkflow...")

  // Attendre que tout soit prêt
  yield* Effect.sleep("2 seconds")
  console.log("✅ Runner prêt à recevoir des workflows")

  // Garder le runner en vie
  yield* Effect.never
})

const FullLayer = Layer.mergeAll(
  RunnerLayer,
  CallPokemonApiWorkflowLayer,
  TransformPokemonRawWorkFlowLayer,
  Logger.minimumLogLevel(LogLevel.Debug) // Plus de logs
)

NodeRuntime.runMain(program.pipe(Effect.provide(FullLayer)))

What’s happening?

First, we define the RunnerLayer that connects with the cluster.
Then, we register the two workflow layers (API + transform).
Next, we define our program and merge all layers.
Finally, we run the program.

Transform Workflow

This workflow is pretty simple: we receive a UUID from the API workflow and then:

Fetch the raw Pokémon using PokemonRawRepository.findById
If not found, return an error
If found, clean and transform the data
Insert into the clean Pokémon table

All of this is wrapped in a TransformPokemonRawService.

packages/workflow/src/TransformPokemonRaw.ts

import { Workflow } from "@effect/workflow"
import { PokemonRawRepository, PokemonRepository } from "@template/database"
import { Effect, Option, pipe, Schema } from "effect"

export class TransformPokemonRawError extends Schema.TaggedError<TransformPokemonRawError>(
  "TransformPokemonRawError"
)("TransformPokemonRawError", {
  message: Schema.String
}) {}

const TransformPokemonRawWorkFlow = Workflow.make({
  name: "TransformPokemonRawWorkFlow",
  success: Schema.Void,
  error: TransformPokemonRawError,
  payload: {
    idRaw: Schema.String
  },
  idempotencyKey: ({ idRaw }) => idRaw
})

const makeTransformPokemonRawWorkflowLogic = ({ idRaw }: { idRaw: string }) =>
  Effect.gen(function*() {
    const service = yield* TransformPokemonRawService
    yield* service.run({ idRaw })
  })

export class TransformPokemonRawService extends Effect.Service<TransformPokemonRawService>()(
  "TransformPokemonRawService",
  {
    effect: Effect.gen(function*() {
      const repo = yield* PokemonRawRepository.PokemonRawRepository
      const pokemonRepo = yield* PokemonRepository.PokemonRepository

      return {
        run: ({ idRaw }: { idRaw: string }) =>
          Effect.gen(function*() {
            yield* pipe(
              repo.findById(idRaw),
              Effect.flatMap(Option.match({
                onNone: () => Effect.fail(new TransformPokemonRawError({ message: "poke id not found" })),
                onSome: (p) => Effect.succeed(p)
              })),
              Effect.flatMap(({ content }) =>
                pokemonRepo.insert({
                  idApiStep: idRaw,
                  pokedexId: content.pokedex_id,
                  generation: content.generation,
                  category: content.category,
                  nameFr: content.name.fr,
                  spriteRegular: content.sprites.regular,
                  spriteShiny: content.sprites.shiny,
                  hp: content.stats.hp,
                  atk: content.stats.atk,
                  def: content.stats.def,
                  speAtk: content.stats.spe_atk,
                  speDef: content.stats.spe_def,
                  vit: content.stats.vit
                })
              ),
              Effect.flatMap((res) => Effect.logInfo(`pokemon ${res.pokedexId} inserted`)),
              Effect.map(() => Effect.void)
            )
          }).pipe(
            Effect.catchAll((e) => Effect.fail(new TransformPokemonRawError({ message: e.message })))
          )
      }
    }),
    dependencies: [
      PokemonRawRepository.PokemonRawRepository.Default,
      PokemonRepository.PokemonRepository.Default
    ]
  }
) {}

export { makeTransformPokemonRawWorkflowLogic, TransformPokemonRawWorkFlow }

The API

To keep this article focused, I won’t go into full detail about the API. If you want, I have other articles explaining API structure with Effect.

I'll just show how the endpoints are grouped:

POST /pokemon/:id: Triggers the ETL for a given Pokémon ID
GET /pokemon/:id: Reads the transformed Pokémon from the DB

packages/server/src/pokemon/HttpGroup.ts

import { HttpApiBuilder, HttpApiEndpoint, HttpApiGroup, HttpApiSchema } from "@effect/platform"
import { PokemonModel } from "@template/database/pokemonModel"
import { PokemonRepository } from "@template/database/PokemonRepository"
import { CallApiPokemon } from "@template/workflow"
import { Effect, Layer, Option, pipe, Schema } from "effect"
import type { ApiType } from "../Api.js"

export class PokemonNotFound extends Schema.TaggedError<PokemonNotFound>()(
  "PokemonNotFound",
  { id: Schema.String },
  HttpApiSchema.annotations({ status: 404 })
) {}

export class HttpApiGroupPokemon extends HttpApiGroup.make("@Group/Pokemon")
  .add(
    HttpApiEndpoint.post("syncPokemonById", "/:id")
      .setPath(Schema.Struct({
        id: pipe(
          Schema.NumberFromString, // parse string → number
          Schema.int()
        )
      }))
      .addSuccess(Schema.Struct({
        id: pipe(
          Schema.NumberFromString,
          Schema.int()
        )
      }))
  )
  .add(
    HttpApiEndpoint.get("getPokemonById", "/:id")
      .setPath(Schema.Struct({
        id: Schema.UUID
      }))
      .addSuccess(PokemonModel)
      .addError(PokemonNotFound)
  )
  .prefix("/pokemon")
{
}

export const HttpApiGroupPokemonLive = (api: ApiType) =>
  HttpApiBuilder.group(
    api,
    "@Group/Pokemon",
    (handlers) =>
      Effect.gen(function*() {
        yield* Effect.log("aa")
        const repo = yield* PokemonRepository

        return handlers
          .handle("syncPokemonById", ({ path }) =>
            pipe(
              CallApiPokemon.CallPokemonApiWorkFlow.execute(
                { id: new Date().toString(), pokemonId: path.id },
                {
                  discard: true
                }
              ),
              Effect.flatMap(() => Effect.succeed({ id: path.id }))
            ))
          .handle("getPokemonById", ({ path }) =>
            repo.findById(path.id)
              .pipe(
                Effect.flatMap(
                  Option.match({
                    onNone: () => Effect.fail(new PokemonNotFound({ id: path.id })),
                    onSome: (p) => Effect.succeed(p)
                  })
                )
              ))
      })
  ).pipe(Layer.provide(PokemonRepository.Default))

Let’s Run Everything

Now you’ve got everything you need to run and test the ETL!

Clone the repo and check out each main.ts or bin.ts file to understand how things work.

To run:

tsx packages/server/src/main.ts → start the API
tsx packages/workerEtl/src/bin.ts → start the worker
tsx packages/shardManager/src/bin.ts → start the Shard Manager

First, I send Pokémon IDs 10 and 100 for synchronization.

Capture d’écran 2025-08-03 à 19.48.26.png

Then I check if the Pokémon with ID 10 is synced:

Capture d’écran 2025-08-03 à 19.49.43.png

Finally, I use the Swagger UI to GET the Pokémon by ID and see the cleaned data.


Conclusion

Effect + Effect Cluster make it very easy to build multi-worker architectures in the TypeScript ecosystem. You can build robust systems that distribute workloads across machines or pods.

With a monorepo approach, you improve the consistency of types between your API, workers, and shard manager.

I hope this article helped you discover the power of @effect/cluster! 🚀

🧵 From Virtual Threads to Distributed ETL with Effect & Cluste
